Yuan Cheng, Xiongyu Ou, Jimei Ma, Linhao Sun, and Zhong-Hua Ma
Introduction
Using water as a reaction media offers advantages for cost, safety, and environment, and is therefore considered green and ideal for laboratory and industry processes. Hence many efforts have been devoted to the development of aqueous catalytic reactions.[1] In aqueous suspension, some reactions involving organic substrates are accelerated, which has been defined as “on water” reactions by Sharpless.[1b] Several approaches have been aimed to strengthen the interaction of organic substrates under “on water” conditions, including the use of surfactants as amphiphilic additives,[1d,1e] the use of phase-transfer catalysts,[2] and the specifically functionalized design of the catalyst structure.[1e–1g] Water also brings some benefits for product isolation. Various types of reactions forming C-C and C-heteroatom bond have been carried out in water with enhanced reactivity and selectivity, such as the nucleophilic attack of a carbanion species in conjugate addition reaction, known as Michael-type reactions.[1a,1c] For example, a Michael addition of ß,ß-disubsti- tuted nitroalkenes with malonate derivatives was reported by Song, in which the otherwise unreactive substrate systems were demonstrated as on-water catalytic reaction.[1a]
An effective promotion for nucleophilic addition is via the use of Brønsted or Lewis acids to activate electrophiles.[3] How- ever, the activating ability of Brønsted acids is commonly weak- ened in presence of water. A few studies,[4] initiated by Kobaya- shi's pioneering work,[3e] were developed on Brønsted acid-surfactant-combined catalysts and their applications in aqueous systems. The surfactant segments assemble into micelles as microreactor, whose hydrophobic cores trap the labile sub- strates and exclude water molecules,[3b,5] while the micelle exte- rior remains hydrated, and allows the permeation of protons for substrate activation.[6] This surfactant-combined strategy has also been extended to solid Brønsted acids.
The hydrophobic assembly is probably caused by fluorocar- bon chain except hydrocarbon chain. Perfluoroalkyl chains have a stronger hydrophobic character than hydrocarbon chains due to their greater molecular cross-sectional area.[7] A classic exam- ple is -C8F17, which is applied in fluorous biphasic media for fluorous catalyst recycling.[8] Even relatively short -C4F9 chains exhibit significant hydrophobicity. Our previous research dem- onstrated that -C4F9 hindered access of water molecules to ad- jacent SO2NHSO2 acid sites,[9] and hydrogen was impeded to bind with the negative conjugate base SO2N–SO2.[10] Similarly, in Wang's reports, pyrrolidine perfluorobutyl sulfonamide was used in aqueous catalysis.[11] On the other hand, perfluoroalkyl sulfonylimides, (RFSO2)2NH, known as nitrogen acids, is widely applied in catalytic field instead of SO3H analogues to practice challenging tasks because of their strong acidity.[3c,3d,9] Gener- ally, compounds with high fluorine content (> 60 %) strongly prefer to go into fluorous phase in fluorocarbon–hydrocarbon systems.[12] These distinct properties could provide water- shielded microenvironments for aqueous reactions. However, too long fluorocarbon chain will inevitably lead to low miscibility of organic and fluorous substrates, weaken the interaction of organic substrates, and increas the cost.
Herein, in the structure of designed sulfonimide catalyst 1a/ 1b, fluorine content and acid density are well balanced by split- ting long perfluoroalkyl chain into two relatively short perfluoroalkyl chains, attached to respective imide Brønsted acid sites (Scheme 1). This method adjusts fluorine content at relative low level with elevated acid density per molecule. The acidity is examined by using the Hammett acidity function, the 31P NMR shift of Et3P=O probe, and conductance titration. The binary acid catalyst has been applied in water to promote the nucleo- philic addition (the Friedel–Crafts reactions). The substrates used herein were indoles, a widely distributed core structure in nature, and there is a large number of applications of synthetic indoles as pharmaceuticals and agrochemicals.[3a,13] With the use of 1a, Friedel–Crafts alkylation of indoles in water was easily performed, via 1,4-addition with ß-monosubstituted vinyl ket- ones and condensation with aldehydes, respectively. The prod- ucts are isolated without column chromatography or recrystalli- zation. The aqueous solution containing 1a is recyclable at least three runs. Furthermore, typically poor-reactive ß,ß-disubsti- tuted vinyl ketones were also activated by the strong acidity of the catalyst, giving medium to good product yields.
Results and Discussion
Catalyst Design
Compounds 1a/1b comprise two N-H groups, respectively at- tached to perfluoroalkyl groups (Scheme 1). Perfluoroalkyl groups bring some advantages of stabilizing the anionic charge of the conjugate bases due to its electron-withdrawing effect. Furthermore, there is an extensive delocalization system over N, O and phenyl ring, which conspire to increase the propensity of dissociation of N–H bonds, largely improving the intrinsic acidity and decreases the dependence on external solvation.[14] An example is the analogue (CF3SO2)2NH, whose pKa values were 2.8, 2.7 and 2.1, respectively in H2O, MeOH, and DMSO. The values demonstrate the effect of the two factors on high acidity.[15] Compounds 1a/1b is thus reasoned to serve as strong acid.
1b was given by acidification of 1b·2Na, but decomposed when handled at ca. 55–65 °C to remove the remained solvent; whereas 1a was obtained. The result suggests that a certain linkage in 1b is more susceptible to the intrinsic acidity at higher temperature than that in 1a. The most likely linkage is -CONH-, which is possibly decomposed by the strong acidity, but stabilized by -C4F9 in 1a. It is inferred that the nonpolar segments, including -C4F9 groups and phenyl ring, aggregate to protect -CONH- group. Especially in the presence of water, due to the hydrophobic hydration effect, the aggregation splits each other's H-bond association of the water molecules near hydrophobic segments, and the bulk water thus hardly en- croaches -CONH- group.[6a,16] The similar aggregation much less efficiently happens to the shorter -CF3 of 1b. 1a is thus a stable amphiphile.
A simple Tyndall effect trial was conducted to confirm the formation of the hydrophobic aggregation (Figure 1a). The Tyn- dall effect is often used as a measurement of a colloid, and the intensity of the effect is proportional to the mean volume of the particles. In our trial, obvious Tyndall phenomenon hap- pened to 1a solution, showing the nano-level aggregation ex- isted. As a comparison, no similar phenomenon was observed for CF3SO3H solution. Furthermore, TEM images of 1a aqueous solution is shown in Figure 1(b). A large amount of nano-size aggregates was observed, with a size of 15–20 nm. Their rela- tively small diameters implied a stacked hydrophobic segment among molecules.
The Acidity Analysis
The acidity of 1a was examined by the Hammett acidity func- tion (H0), Gutmann method, and conductance titration. The re- sults are summarized in Table 1. H0 was obtained by UV/Vis spectrophotometry method, which is a semiquantitative meas- ure of acidity used for concentrated solutions of strong acid.[10] As shown, the H0 value of 1a was –0.52, definitely comparable with tested –0.33 of concentrated H2SO4. The acidity was fur- ther determined by the 31P NMR shift of the Et3P=O probe according to the classical Gutmann method.[10,17] The probe formed Et3P=O···H H-bond with acids. The stronger acidity, the stronger hydrogen bond, and the lower electron density at the phosphorus, and the larger 31P chemical shift. The chemical shift difference (Δδ31P) of 1a/Et3P=O adducts to the reference (C6H5)2ClP=O was 46.44, very close to 46.40 of H2SO4/Et3P=O adducts.[10] These results are also supported by the initial con- ductances of 1a and H2SO4 with the same concentrations, which are both 0.136 ms/cm, meaning the close ionization abil- ity of 1a and H2SO4. The values are obviously higher than 0.111 ms/cm of oxalic acid. Also, the acid content of 1a is calculated as 2.49 mmol/g (vs. theoretic 2.62 mmol/g) based on the titration curve, suggesting at least 95 % purity of 1a. These results demonstrate 1a can rival the acidity of concentrated H2SO4.
Catalytic Michael Addition of Indoles with α,ß-Unsaturated Ketones in Water
Acid-catalyzed Michael addition reactions of indoles with α,ß- unsaturated carbonyl compounds construct 3-substituted ind- oles, a type of important precursors in the synthesis of biologi- cally active compounds and natural products.[18] Our initial at- tempt involved the use of differently active substrates to react with indole 2a, such as vinyl aldehyde (3a), 3-methyl-2-butenal (3b), methyl acrylate (3c), 4-methyl-3-penten-2-one (3d), and 3- penten-2-one (3e), in the presence of 1a. The results are shown in Table 2.
Active 3a and 3b were easily consumed, but no purification was conducted for products 4a and 4b, due to the complex product system based on TLC analysis; while the reaction of poor-reactive ester 3c was sluggish using up to 5.0 mol-% 1a (Entries 1–3). The reaction results of ß,ß-disubstituted vinyl ket- one 3d, which lacks reactivity attributed to the steric and elec- tronic nature of ß-carbon, are given in entries 4–8. Solvent screening demonstrated THF and H2O afforded comparable 80 % and 78 % yields, superior to other solvents (48–61 %). Wa- ter was thus preferred from the perspective of green chemis- try.[1a,1d] The relatively reactive vinyl ketone 3e furnished com- plex products under the same conditions, and only 6 % yield of 4e was given (Entry 9); whereas, it went up to 62 % at 30 °C with reduced 2.5 mol-% of 1a (Entry 10). Furthermore, 91 % yield occurred with the equimolar 2a and 3e (Entry 11).
With the optimized reaction conditions in hand, the general- ity of the catalytic system was explored, and the results are listed in Scheme 2. To our delight, the high catalytic perform- ance of 1a was extended to various indoles with high func- tional group tolerance. ß-Monosubstituted vinyl ketones gave 86–98 % yields (4e–4p); while ß, ß-Disubstituted vinyl ketone exhibited 78–85 % yields (4d, 4r–4t) and moderate 42 % yield of 4q.
Various Brønsted acid catalysts were used to catalyze the re- actions to get a mechanistic insight, and the results are summa- rized in Table 3. Keeping loading the same mol of H+ into the system, H2SO4 gave only 8 % and 22 % yields of 4k, in 3 h and 24 h, respectively; while CF3SO3H gave 26 % yield in 3 h (Entries 2–4). Interestingly, the micelle-type acid, o-C12H25C6H4SO3 H, gave 91 % yield in 2 h (Entry 5). The difference was insignifi- cantly relative to acid strength for ß-monosubstituted vinyl ketone. The acid strength, based on the H0 values, has the fol- lowing order: CF3SO3OH (–3.52) > H2SO4 (–0.33) ≈ 1a (–0.52) >o-C12H25C6H4SO3H (ca. 0.44–0.58).[10] It was thus reasoned that the hydrophobic segments -C12H25 of o-C12H25C6H4SO3H formed micelles, locating the organic substrates and facilitating the reaction. Contrarily, H2SO4 and CF3SO3H lacked hydro- phobic segment, giving poor catalytic efficiency. The similar hy- drophobic nano-aggregations were formed in 1a for its amphiphilic structure, leading to 98 % yield of 4k (Entry 1), slightly higher than 91 % by o-C12H25C6H4SO3H. This probably sug- gested less product residual in the nano-aggregations. The nano-aggregations were confirmed by Tyndall effect and TEM image (Figure 1). The fluorine content of 1a comes to 45 %, and the lipophobicity of fluorocarbon chain promoted the separa- tion of the product from the catalyst. Moreover, C4F9- groups are adjacent to N-H sites, and the hydrophobic aggregations can control the local polarity around active sites. The controlling allows modulating the activity of catalysts.[1g,9] A homemade acid, Cl(CH2)3SO2NHSO2C4F9, was used to support the idea.[10] The acid gave slightly reduced yield (91 %), in which ClCH2CH2CH2- instead of C4F9- led to the fluorine content down to 39 %. Moreover, the product isolation is simple. The aqueous system with 1a allowed obvious oily product floated on the face (Figure 2, inset). A simple extraction using EtOAc was enough to offer pure products, without chromatography and recrystallization, which reduced the waste generation.
On the other hand, 1a-catalysed addition of ß,ß-disubsti- tuted vinyl ketone 3d gave 82 % yield, much higher than 36 % by C12H25C6H4SO3H and 61 % by Cl(CH2)3SO2NHSO2C4F9. 1a and Cl(CH2)3SO2NHSO2C4F9, with more excellent acidity, acti- vated 3d more efficiently than C12H25C6H4SO3H. 1a thus exhib- ited the best catalytic performance.
In our experiments, the use of water as medium improved the reaction yield and controlled the product solubility, which simplified the product purification process in the reaction of active ß-monosubstituted substrate. The strong acidity of 1a expanded the substrate scope to the ß,ß-disubstituted ketones, to which o-C12H25C6H4SO3H was not effective due to lower acidity. Furthermore, 1a is a dual Brønsted acid, and the catalyst dosage was less (2.5 mol-% vs. 5 mol-%).
Based on the observations and literatures, a tentative enrich- ment and activation model of α,ß-unsaturated ketone is pro- posed, as depicted in Figure 2. The fluorocarbon chains of 1a tend to regroup and segregate from both the hydrophilic -NH and lipophilic phenyl ring, and aggregate in a separate zone.
Benefiting from its bulkiness, the aggregations stack into a large-size nuclear hydrophobic zone; while the attached -NH sites hang on the outer zone. -NH groups form H-bond with the carbonyl group of enol ketone or competitive bulky water. However, the fluorocarbon chains, along with phenyl ring, help to resist bulk water, and the organic substrates was thus acti- vated. Moreover, the ethylene linkage of enol ketones possibly get accessible to the phenyl rings. The organic substrate is thus enriched around 1a, facilitating the further reaction.
The recycling performance of 1a was investigated using 2a and 3f to give 4k, and the results are in Table 4. CCl4 was used to extract 4k, and the aqueous phase was fed with fresh 2a and 3f for the next run. As shown, the catalyst could be reused at least three runs with > 92 % yields. The extension of reaction time was possibly owed to slight catalyst loss. In the following cycle, the yield was down to 87 % in 12 h.
Catalytic Condensation of Indoles with Aldehyde in Water
Furthermore, the catalytic generality of 1a in water was investi- gated in condensation of indole with aldehyde. The product 3, 3-bis(indolyl)alkanes (BIAs), which were widely isolated from various natural sources, exhibit a range of biological activi- ties.[13b] The investigations started with 4-anisaldehyde (5a) and 2a in water at 30 °C (Table 5). 2a was consumed completely in 15 minutes in the presence of 2.5 mol-% 1a, but with complex products (Entry 1). A reduced amount of 1a (1 mol-%) produced unsolvable sticky product (Entry 2), but contaminated by resid- ual 2a and 5a. Probably, 1a worked highly efficiently, and BIA precipitated quickly so that the reagents were wrapped in. A trace of organic solvents was thus added (Entries 3, 4). As men- tioned above, the hydrophobic aggregations were loose, and thus water remains in contact with the hydrophobic chain to some degree.[6a] The added organic solvents filled the inter- space, and induced the hydrophobic zone becoming denser. A little CHCl3 or EtOAc (5 %, v: v) was as expected, and provided 94 % and 91 % yields, respectively. It suggested most of the remained substrate went into the hydrophobic aggregation. EtOH was also used, only producing sticky product very quickly (Entry 5). Yield of 79 % was obtained by column chromatogra- phy in extended 4 h (Entry 6). This was reasonable considering EtOH dispersed over the system because of the water-solubility.
Less toxic EtOAc was used in the exploration experiments of substrate scope. The results are shown in Scheme 3. Simple filtration for powder products or extraction for sticky products were carried out with > 95 % purity, confirmed by NMR spectro- scopy. Excellent yields of 87–99 % were given.
Similarly to above Michael addition, the strong acidity of 1a expanded the catalytic spectrum to the unactived ketones in the condensation reactions (Scheme 4). Acetone and butanone gave satisfactory 74–94 % yields (8a–8d, 8f–8i). The strong acidity of 1a successfully activated the aliphatic ketones. Some- what surprising, only moderate yield (42 %) of 4e was obtained. Various Brønsted acid catalysts were also used to catalyze the reactions, shown in Table 6. Under the similar conditions, 1a gave 91 % yield of 6a, 54 % yield for o-C12H25C6H4SO3H and 81 % yield for Cl(CH2)3SO2NHSO2C4F9, but no detectable yield for H2SO4 (Entries 1–4). The formation of hydrophobic location of the catalysts played a crucial role. Additionally, 1a exhibited more excellent catalytic ability than the other two due to its acidity superiority both in the reactions of anisaldehyde and acetone (Entries 5–7).
In our catalytic reactions, the careful purification by column chromatography and recrystallization were not obligated. This is significant, because synthetic chemistry encourages to reduce the reaction waste. The advantage was attributed to the local hydrophobic effect of the catalyst 1a. The hydrocarbon chain helped to enrich the substrates, and the fluorocarbon chain re- pelled away the excess water molecules and product molecules due to its hydrophobicity/lipophobicity. The waste generated from silica and toxic solvents was thus reduced. This is signifi- cant for searching environmentally benign reactions and reduce the E factor.[1d]
Conclusions
In summary, we demonstrated a designed Brønsted acid 1a en- ables Friedel–Crafts alkylation of indoles in water. The hydro- phobic aggregations of fluorocarbon chains, along with phenyl ring, of 1a protected acid sites from bulk water and enriched the substrates. The amphiphilic structure has been proven cru- cial for the high catalytic efficiency. The catalyst reasonably re- duces the employment of the fluorocarbon number by splitting the longer fluorocarbon chain into shorter, with strong acidity and hydrophobicity maintained. The strong acidity of 1a enabled the reactions of some unreactive substrates in water.
3-Bromo-5-butoxyphenylboronic acidCatalog No.:AA003BOJ CAS No.:1072951-84-8 MDL No.:MFCD08457637 MF:C10H14BBrO3 MW:272.9314 |

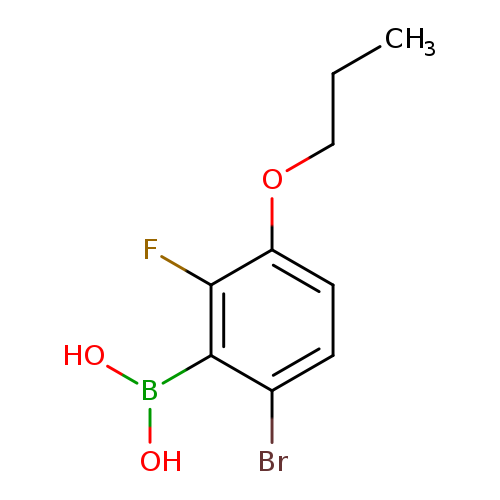

6-Bromo-2-fluoro-3-propoxyphenylboronic acidCatalog No.:AA003N14 CAS No.:1072951-85-9 MDL No.:MFCD09038422 MF:C9H11BBrFO3 MW:276.8952 |

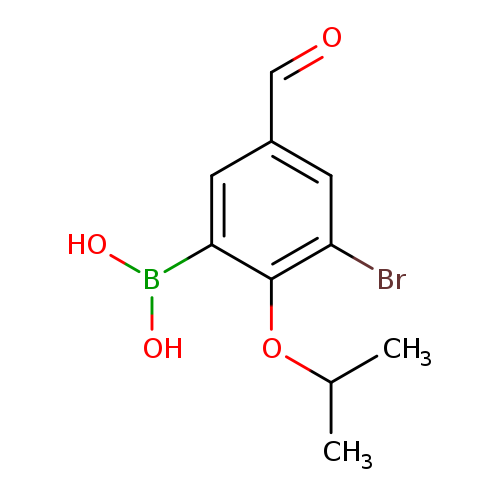

3-Bromo-2-isopropoxy-5-formylphenylboronic acidCatalog No.:AA003IXT CAS No.:1072951-86-0 MDL No.:MFCD09750471 MF:C10H12BBrO4 MW:286.9149 |
